If
the setting is not correct, we need to make an adjustment. All
accessories should be offwhen we make adjustments, including

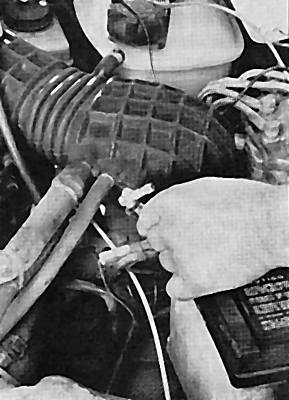

the cooling fan. Keep an eye on the dwell meter, and turn the
idle air bypass adfustlng screw on the throttle valve until the
duty cycle is correct.
If
this adjustment solves the problem we're done and the car is
ready to roll. If it doesn't then the next step is checking to
see if the idle stabilizer is properly functioning.
Looking for Good Vibrations

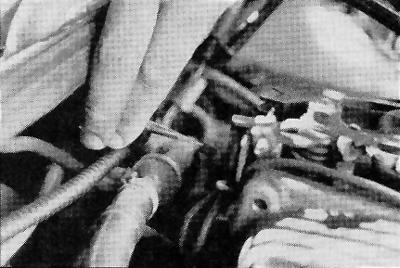

A simple check for the idle stabilizer's
proper functioning can be done by switching the ignition on,
but not starting the car. Place your hand on the idle stabilizer
to feel whether or not it is vibrating. If it's vibrating, it's
probably okay, and we can go on to checking the idle switch.
If it is not vibrating then we need to check ifit's getting any
voltage.
|
Digging into the Connections
Turn
off the motor, then turn the ignition on without starting the

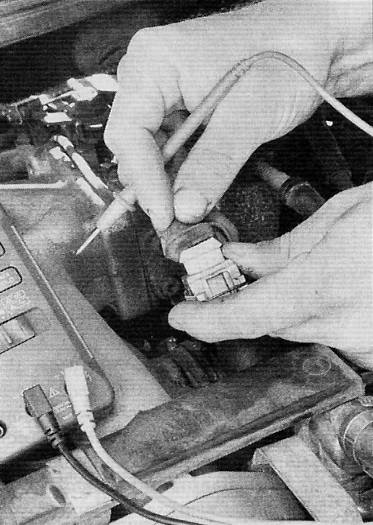

car. Unplug the connector (See photo). Takillg care not to damage

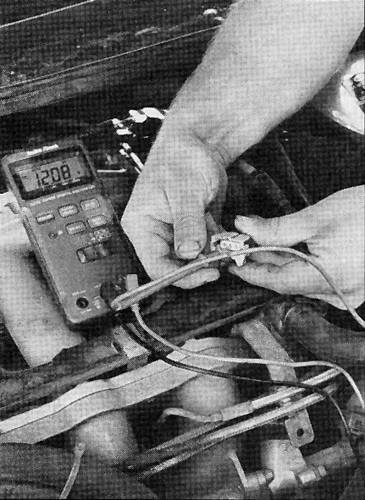

the connector, check for battery voltage (about 12V) between
the center terminal and ground (the intake manifold is a good
ground) and about IOV between the center terminal and each of
the two outer terminals.
If
there's no voltage, the problem is somewhere in the harness or
ECU, and you'll need to check the wiring and dig deeper into
the Bentley Manual for a solution. It is common for the wires
inside the rubber boot on the idle stabilizer to break, so check
there first. If there is voltage, the next step is to check the
condition of the electrical components of the stabilizer.
|
